Polycarbonate-Enclosures MBX Basic / Clear Cover

Polycarbonate-Enclosures MBX Basic / Clear Cover

Material cover: Polycarbonate

Material base: Polycarbonate

Material sealing: Polyurethane

Material screws: Stainless Steel V2 A

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: Yes

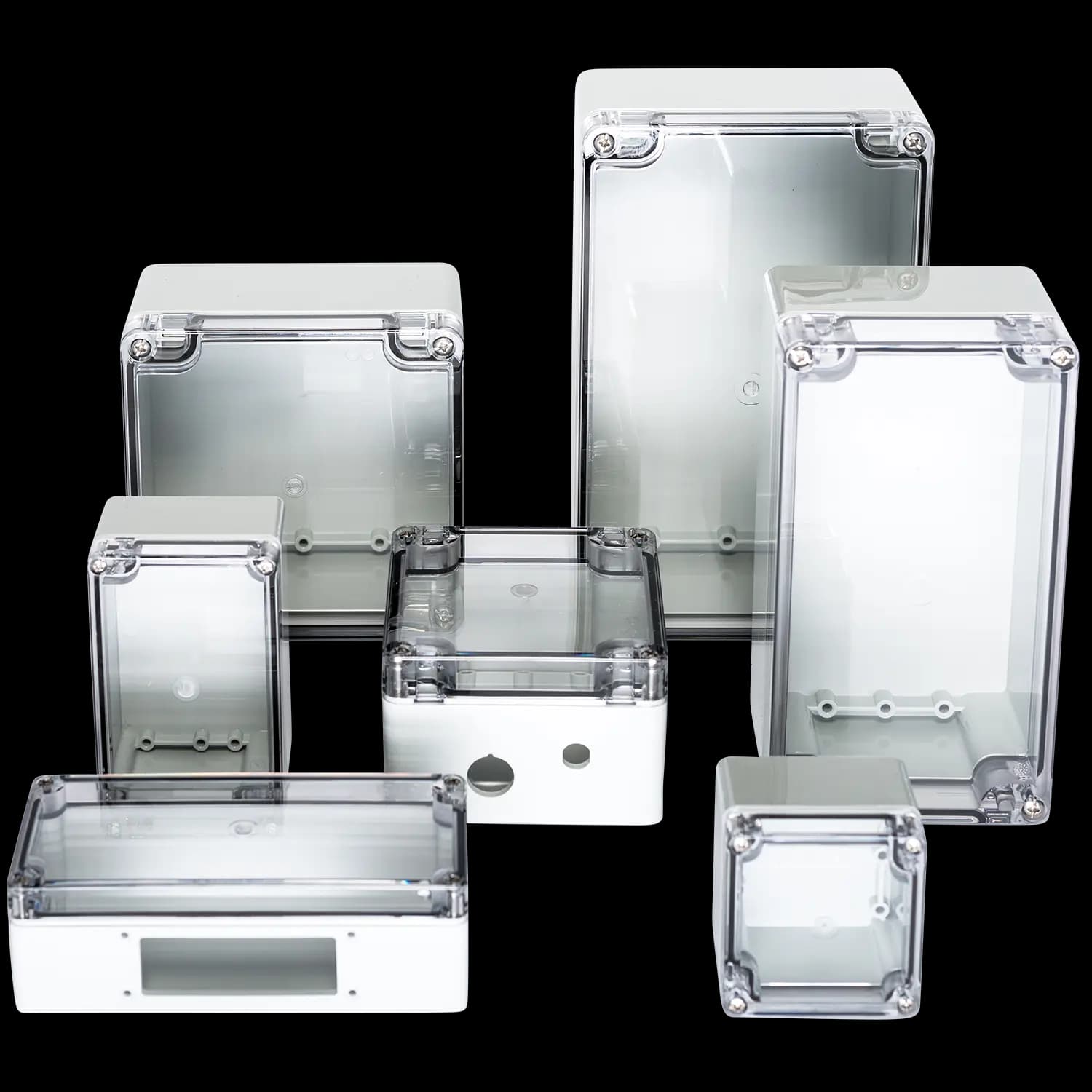

MBX BASIC enclosures with transparent covers made of polycarbonate have been specially designed for industrial applications. The 10 sizes are compatible with the well-known standard aluminum enclosures and represent a cost-effective alternative. The MBX BASIC series is superior to all aluminium enclosures, especially in applications with an increased risk of corrosion. The standard polycarbonate material in grey RAL 7035 is weatherproof and absolutely corrosion-free.

With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP69. The enclosures can easily withstand high pressure water jets, steam jet cleaning or short-term flooding.


1004100200	MBX 606030 BK	58 mm	64 mm	34 mm	Request
1004100400	MBX 906030 BK	98 mm	64 mm	35 mm	Request
1004100900	MBX 708055 BK	75 mm	80 mm	57 mm	Request
1004101100	MBX 128055 BK	125 mm	80 mm	57 mm	Request
1004101300	MBX 178055 BK	175 mm	80 mm	57 mm	Request
1004101800	MBX 121280 BK	122 mm	120 mm	80 mm	Request
1004101900	MBX 121290 BK	122 mm	120 mm	90 mm	Request
1004102300	MBX 221290 BK	220 mm	120 mm	90 mm	Request
1004102500	MBX 161690 BK	160 mm	160 mm	90 mm	Request
1004102600	MBX 261690 BK	260 mm	160 mm	90 mm	Request


1004100200	MBX 606030 BK	58 mm	64 mm	34 mm	Request
1004100400	MBX 906030 BK	98 mm	64 mm	35 mm	Request
1004100900	MBX 708055 BK	75 mm	80 mm	57 mm	Request
1004101100	MBX 128055 BK	125 mm	80 mm	57 mm	Request
1004101300	MBX 178055 BK	175 mm	80 mm	57 mm	Request
1004101800	MBX 121280 BK	122 mm	120 mm	80 mm	Request
1004101900	MBX 121290 BK	122 mm	120 mm	90 mm	Request
1004102300	MBX 221290 BK	220 mm	120 mm	90 mm	Request
1004102500	MBX 161690 BK	160 mm	160 mm	90 mm	Request
1004102600	MBX 261690 BK	260 mm	160 mm	90 mm	Request
