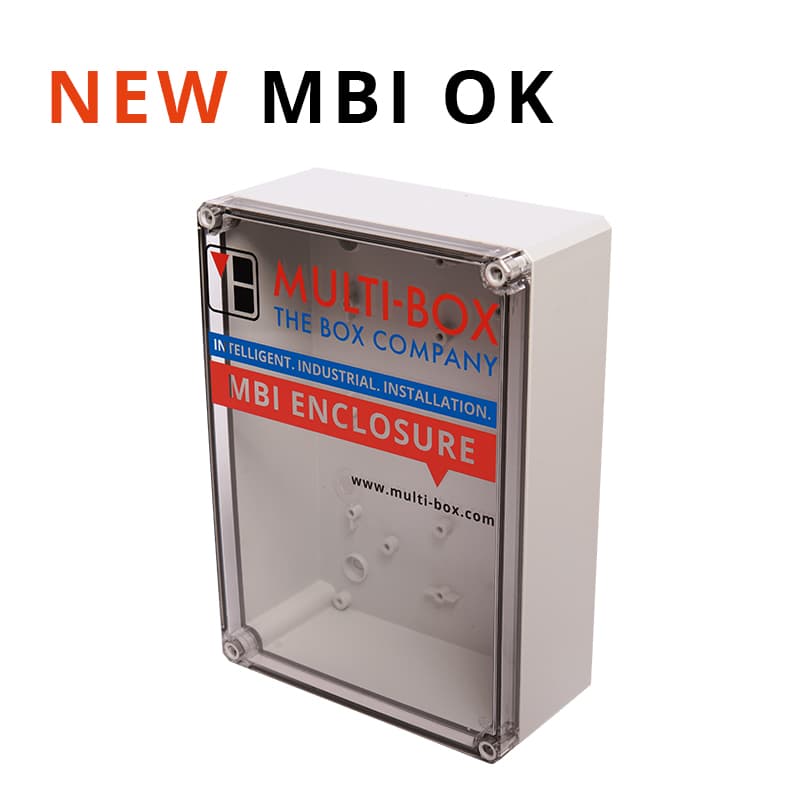

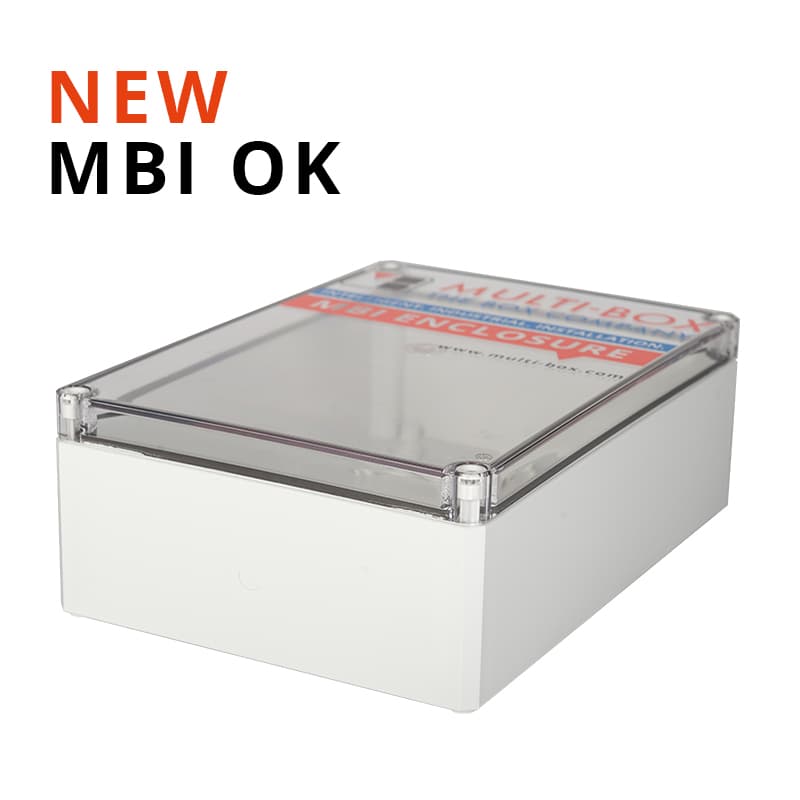

MBI-OK Plain sides / Clear Cover

MBI-OK Plain sides / Clear Cover

Material cover: Polycarbonate

Material base: Polycarbonate GF10

Material sealing: Polyurethane

Material screws: Plastic

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: Yes

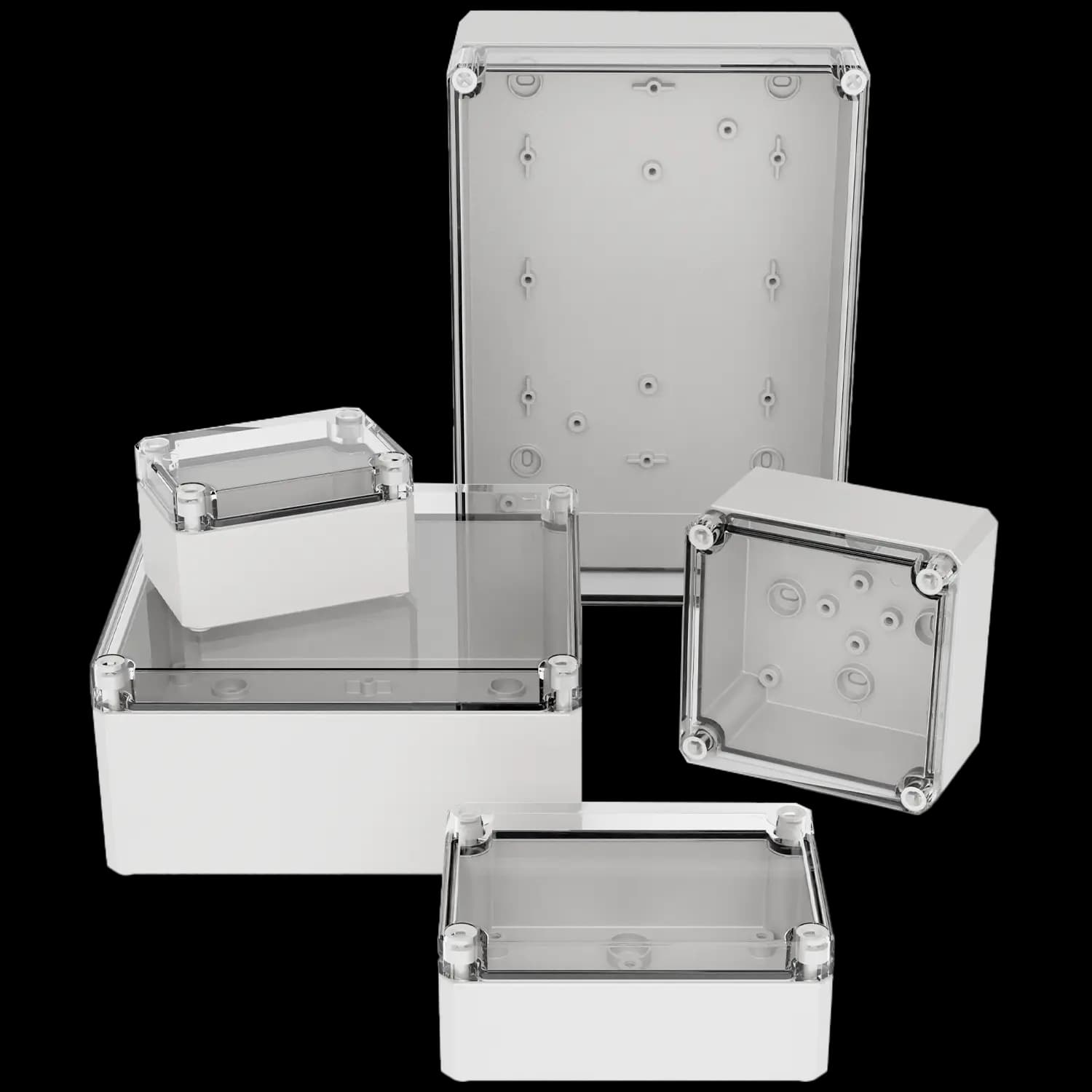

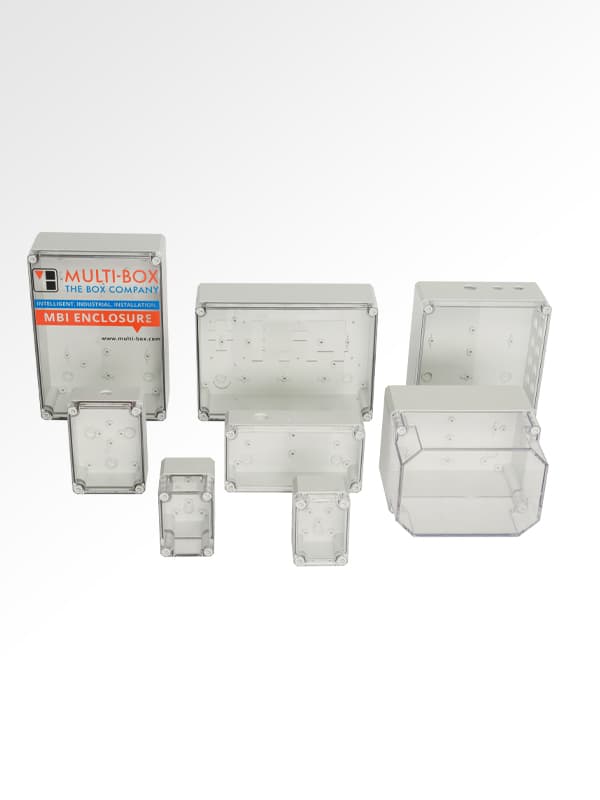

The MBI enclosure series is characterised by a wide range of sizes and a systematic focus on requirements in industrial installations. MBI enclosure bases are designed with plane side walls. These can be mechanically processed according to customer requirements. Transparent covers are supplied with this version.

MBI enclosure bases are made of glass fibre reinforced polycarbonate in light grey colour RAL 7035. The material is UV-resistant (UL 746C F1) and self-extinguishing (UL 94 V0). The transparent covers are also made of UV-resistant polycarbonate (UL 746C F1) and comply with the flammability classification UL 94 V2. Depending on quantities, the enclosures can be produced in special colours.

With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP66. The cover screws are made of plastic material and therefore they are completely corrosion-free. The impact resistance of the enclosures corresponds to IK08, making the MBI series ideally suitable for use in industrial and outdoor applications.

MBI enclosures offer a variety of mounting points for direct fixation of components into the base. The self-forming plastic screws for assembly are included in the scope of delivery.

There are several ways to mount the enclosures to walls or machines. With the cover opened, mounting can be done through wall mounting channels outside the sealing area. Alternatively, there are pre-formed knockouts on the enclosure base. With the cover closed, the enclosures can be fastened with external wall brackets. Another option is mounting with M4 screws from the rear side into pressed-in thread bushes in the bottom of the enclosure.

Depending on quantities, we can produce customer-specific mould sides. Individual knockouts, cutouts and hole designs can be implemented in the injection mould and there is no requirement for further mechanical processing.


0903107760	MBI-PC 070706 OK	65 mm	65 mm	57 mm	Request
0903107780	MBI-PC 070708 OK	65 mm	65 mm	81 mm	Request
0903109760	MBI-PC 090706 OK	94 mm	65 mm	57 mm	Request
0903109780	MBI-PC 090708 OK	94 mm	65 mm	81 mm	Request
0903109960	MBI-PC 090906 OK	94 mm	94 mm	57 mm	Request
0903109980	MBI-PC 090908 OK	94 mm	94 mm	81 mm	Request
0903103960	MBI-PC 130906 OK	130 mm	94 mm	57 mm	Request
0903103980	MBI-PC 130908 OK	130 mm	94 mm	81 mm	Request
0903108960	MBI-PC 180906 OK	180 mm	94 mm	57 mm	Request
0903108980	MBI-PC 180908 OK	180 mm	94 mm	81 mm	Request
0903101170	MBI-PC 111107 OK	110 mm	110 mm	66 mm	Request
0903101190	MBI-PC 111109 OK	110 mm	110 mm	90 mm	Request
0903108160	MBI-PC 181106 OK	180 mm	110 mm	63 mm	Request
0903108180	MBI-PC 181108 OK	180 mm	110 mm	84 mm	Request
0903108190	MBI-PC 181109 OK	180 mm	110 mm	90 mm	Request
0903108110	MBI-PC 181111 OK	180 mm	110 mm	111 mm	Request
0903108140	MBI-PC 181114 OK	180 mm	110 mm	137 mm	Request
0903108170	MBI-PC 181117 OK	180 mm	110 mm	165 mm	Request
0903103380	MBI-PC 131308 OK	130 mm	130 mm	75 mm	Request
0903103300	MBI-PC 131310 OK	130 mm	130 mm	99 mm	Request
0903108360	MBI-PC 181306 OK	180 mm	130 mm	63 mm	Request
0903108380	MBI-PC 181308 OK	180 mm	130 mm	84 mm	Request
0903108390	MBI-PC 181309 OK	180 mm	130 mm	90 mm	Request
0903108310	MBI-PC 181311 OK	180 mm	130 mm	111 mm	Request
0903108340	MBI-PC 181314 OK	180 mm	130 mm	137 mm	Request
0903108370	MBI-PC 181317 OK	180 mm	130 mm	165 mm	Request
0903108860	MBI-PC 181806 OK	182 mm	180 mm	63 mm	Request
0903108880	MBI-PC 181808 OK	182 mm	180 mm	84 mm	Request
0903108890	MBI-PC 181809 OK	182 mm	180 mm	90 mm	Request
0903108810	MBI-PC 181811 OK	182 mm	180 mm	111 mm	Request
0903108840	MBI-PC 181814 OK	182 mm	180 mm	137 mm	Request
0903108870	MBI-PC 181817 OK	182 mm	180 mm	165 mm	Request
0903105860	MBI-PC 251806 OK	254 mm	180 mm	63 mm	Request
0903105880	MBI-PC 251808 OK	254 mm	180 mm	84 mm	Request
0903105890	MBI-PC 251809 OK	254 mm	180 mm	90 mm	Request
0903105810	MBI-PC 251811 OK	254 mm	180 mm	111 mm	Request
0903105840	MBI-PC 251814 OK	254 mm	180 mm	137 mm	Request
0903105870	MBI-PC 251817 OK	254 mm	180 mm	165 mm	Request
0903102230	MBI-L-PC 202013 OK	200 mm	200 mm	130 mm	Request
0903102280	MBI-L-PC 202019 OK	200 mm	200 mm	185 mm	Request
0903103230	MBI-L-PC 302013 OK	300 mm	200 mm	130 mm	Request
0903103280	MBI-L-PC 302019 OK	300 mm	200 mm	185 mm	Request
0903106510	MBI-PC 362511 OK	361 mm	254 mm	111 mm	Request
0903106570	MBI-PC 362517 OK	361 mm	254 mm	165 mm	Request
0903103330	MBI-L-PC 303013 OK	300 mm	300 mm	130 mm	Request
0903303380	MBI-L-PC 303019 OK	300 mm	300 mm	185 mm	Request
0903104330	MBI-L-PC 403013 OK	400 mm	300 mm	130 mm	Request
0903104380	MBI-L-PC 403019 OK	400 mm	300 mm	185 mm	Request
