MBI-MK Knockouts / Clear Cover

MBI-MK Knockouts / Clear Cover

Material cover: Polycarbonate

Material base: Polycarbonate GF10

Material sealing: Polyurethane

Material screws: Plastic

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: Yes

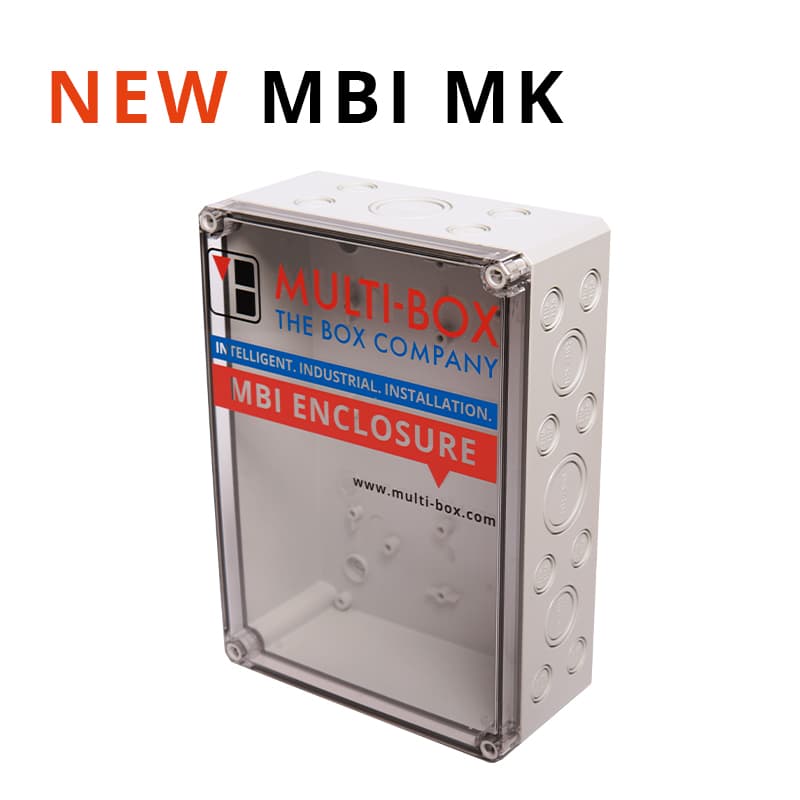

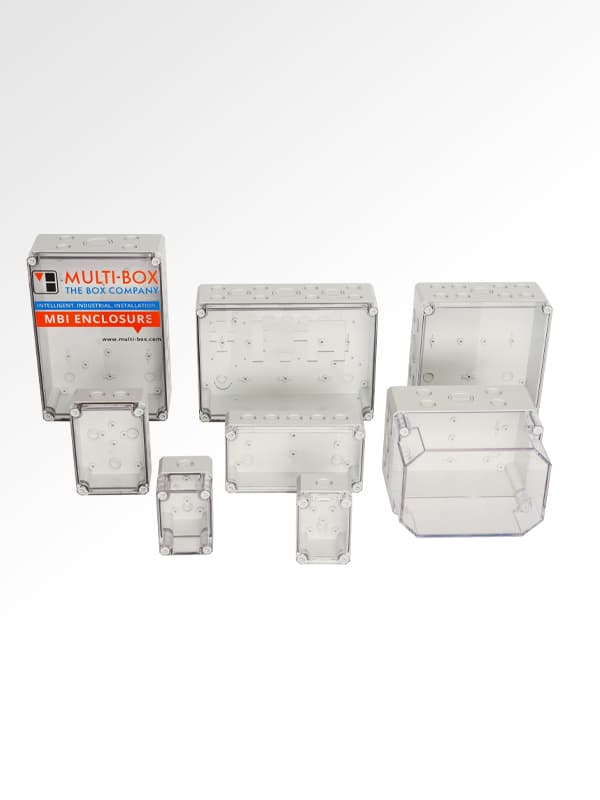

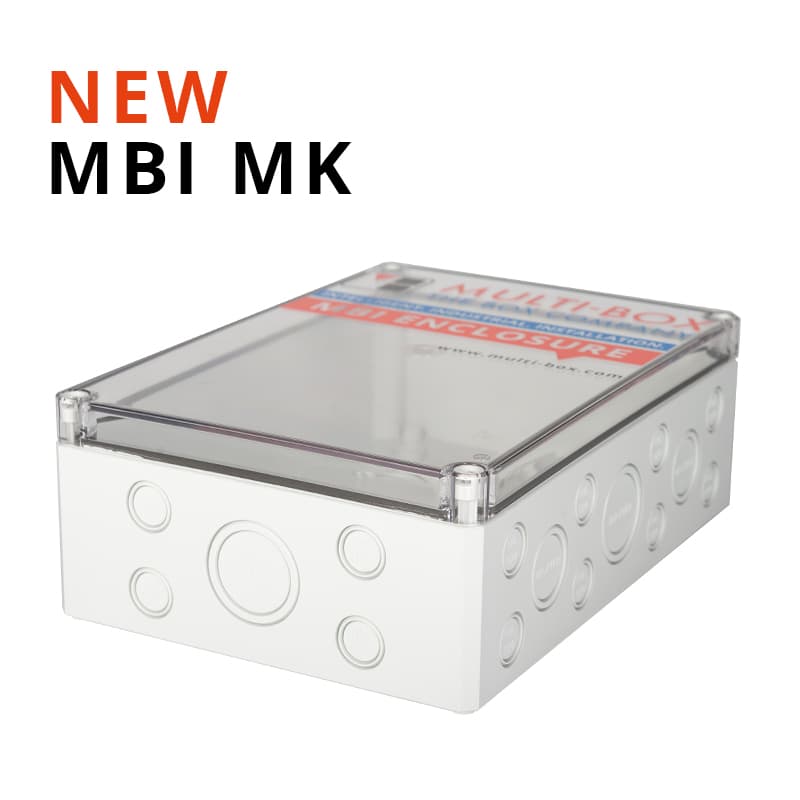

The MBI enclosure series is characterised by a wide range of sizes and a systematic focus on requirements in industrial installations. MBI enclosure bases are designed with metric pre-formed knockouts on all four sides. These can be opened for cable entries. Transparent covers are supplied with this version.

MBI enclosure bases are made of glass fibre reinforced polycarbonate in light grey colour RAL 7035. The material is UV-resistant (UL 746C F1) and self-extinguishing (UL 94 V0). The transparent covers are also made of UV-resistant polycarbonate (UL 746C F1) and comply with the flammability classification UL 94 V2. Depending on quantities, the enclosures can be produced in special colours.

With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP66. The cover screws are made of plastic material and therefore they are completely corrosion-free. The impact resistance of the enclosures corresponds to IK08, making the MBI series ideally suitable for use in industrial and outdoor applications.

MBI enclosures offer a variety of mounting points for direct fixation of components into the base. The self-forming plastic screws for assembly are included in the scope of delivery.

There are several ways to mount the enclosures to walls or machines. With the cover opened, mounting can be done through wall mounting channels outside the sealing area. Alternatively, there are pre-formed knockouts on the enclosure base. With the cover closed, the enclosures can be fastened with external wall brackets. Another option is mounting with M4 screws from the rear side into pressed-in thread bushes in the bottom of the enclosure.

Depending on quantities, we can produce customer-specific mould sides. Individual knockouts, cutouts and hole designs can be implemented in the injection mould and there is no requirement for further mechanical processing.


0904107760	MBI-PC 070706 MK	65 mm	65 mm	57 mm	Request
0904107780	MBI-PC 070708 MK	65 mm	65 mm	81 mm	Request
0904109760	MBI-PC 090706 MK	94 mm	65 mm	57 mm	Request
0904109780	MBI-PC 090708 MK	94 mm	65 mm	81 mm	Request
0904109960	MBI-PC 090906 MK	94 mm	94 mm	57 mm	Request
0904109980	MBI-PC 090908 MK	94 mm	94 mm	81 mm	Request
0904103960	MBI-PC 130906 MK	130 mm	94 mm	57 mm	Request
0904103980	MBI-PC 130908 MK	130 mm	94 mm	81 mm	Request
0904108960	MBI-PC 180906 MK	180 mm	94 mm	57 mm	Request
0904108980	MBI-PC 180908 MK	180 mm	94 mm	81 mm	Request
0904101170	MBI-PC 111107 MK	110 mm	110 mm	66 mm	Request
0904101190	MBI-PC 111109 MK	110 mm	110 mm	90 mm	Request
0904108160	MBI-PC 181106 MK	180 mm	110 mm	63 mm	Request
0904108180	MBI-PC 181108 MK	180 mm	110 mm	84 mm	Request
0904108190	MBI-PC 181109 MK	180 mm	110 mm	90 mm	Request
0904108110	MBI-PC 181111 MK	180 mm	110 mm	111 mm	Request
0904108140	MBI-PC 181114 MK	180 mm	110 mm	137 mm	Request
0904108170	MBI-PC 181117 MK	180 mm	110 mm	165 mm	Request
0904103380	MBI-PC 131308 MK	130 mm	130 mm	75 mm	Request
0904103300	MBI-PC 131310 MK	130 mm	130 mm	99 mm	Request
0904108360	MBI-PC 181306 MK	180 mm	130 mm	63 mm	Request
0904108380	MBI-PC 181308 MK	180 mm	130 mm	84 mm	Request
0904108390	MBI-PC 181309 MK	180 mm	130 mm	90 mm	Request
0904108310	MBI-PC 181311 MK	180 mm	130 mm	111 mm	Request
0904108340	MBI-PC 181314 MK	180 mm	130 mm	137 mm	Request
0904108370	MBI-PC 181317 MK	180 mm	130 mm	165 mm	Request
0904108860	MBI-PC 181806 MK	182 mm	180 mm	63 mm	Request
0904108880	MBI-PC 181808 MK	182 mm	180 mm	84 mm	Request
0904108890	MBI-PC 181809 MK	182 mm	180 mm	90 mm	Request
0904108810	MBI-PC 181811 MK	182 mm	180 mm	111 mm	Request
0904108840	MBI-PC 181814 MK	182 mm	180 mm	137 mm	Request
0904108870	MBI-PC 181817 MK	182 mm	180 mm	165 mm	Request
0904105860	MBI-PC 251806 MK	254 mm	180 mm	63 mm	Request
0904105880	MBI-PC 251808 MK	254 mm	180 mm	84 mm	Request
0904105890	MBI-PC 251809 MK	254 mm	180 mm	90 mm	Request
0904105810	MBI-PC 251811 MK	254 mm	180 mm	111 mm	Request
0904105840	MBI-PC 251814 MK	254 mm	180 mm	137 mm	Request
0904105870	MBI-PC 251817 MK	254 mm	180 mm	165 mm	Request
0904102230	MBI-L-PC 202013 MK	200 mm	200 mm	130 mm	Request
0904102280	MBI-L-PC 202019 MK	200 mm	200 mm	185 mm	Request
0904103230	MBI-L-PC 302013 MK	300 mm	200 mm	130 mm	Request
0904103280	MBI-L-PC 302019 MK	300 mm	200 mm	185 mm	Request
0904106510	MBI-PC 362511 MK	361 mm	254 mm	111 mm	Request
0904106570	MBI-PC 362517 MK	361 mm	254 mm	165 mm	Request
0904103330	MBI-L-PC 303013 MK	300 mm	300 mm	130 mm	Request
0904303380	MBI-L-PC 303019 MK	300 mm	300 mm	185 mm	Request
0904104330	MBI-L-PC 403013 MK	400 mm	300 mm	130 mm	Request
0904104380	MBI-L-PC 403019 MK	400 mm	300 mm	185 mm	Request
